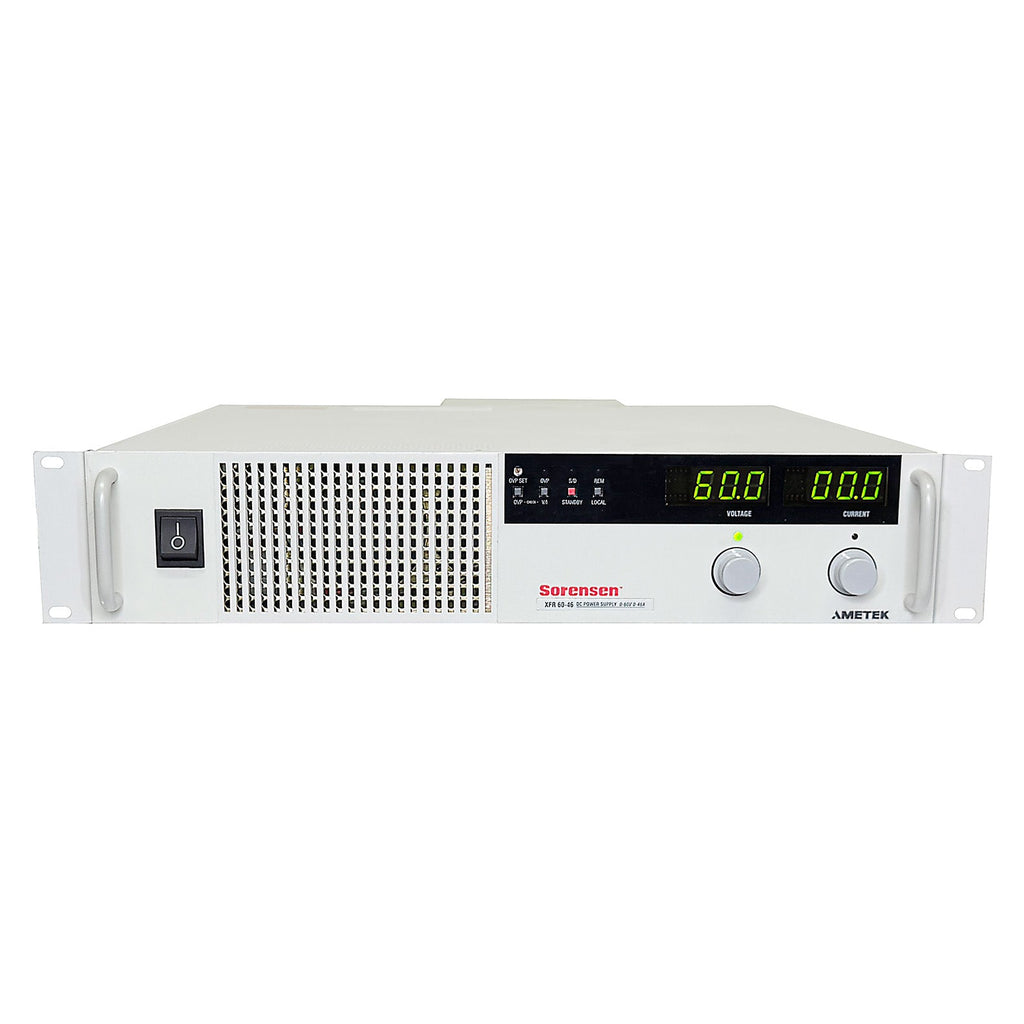

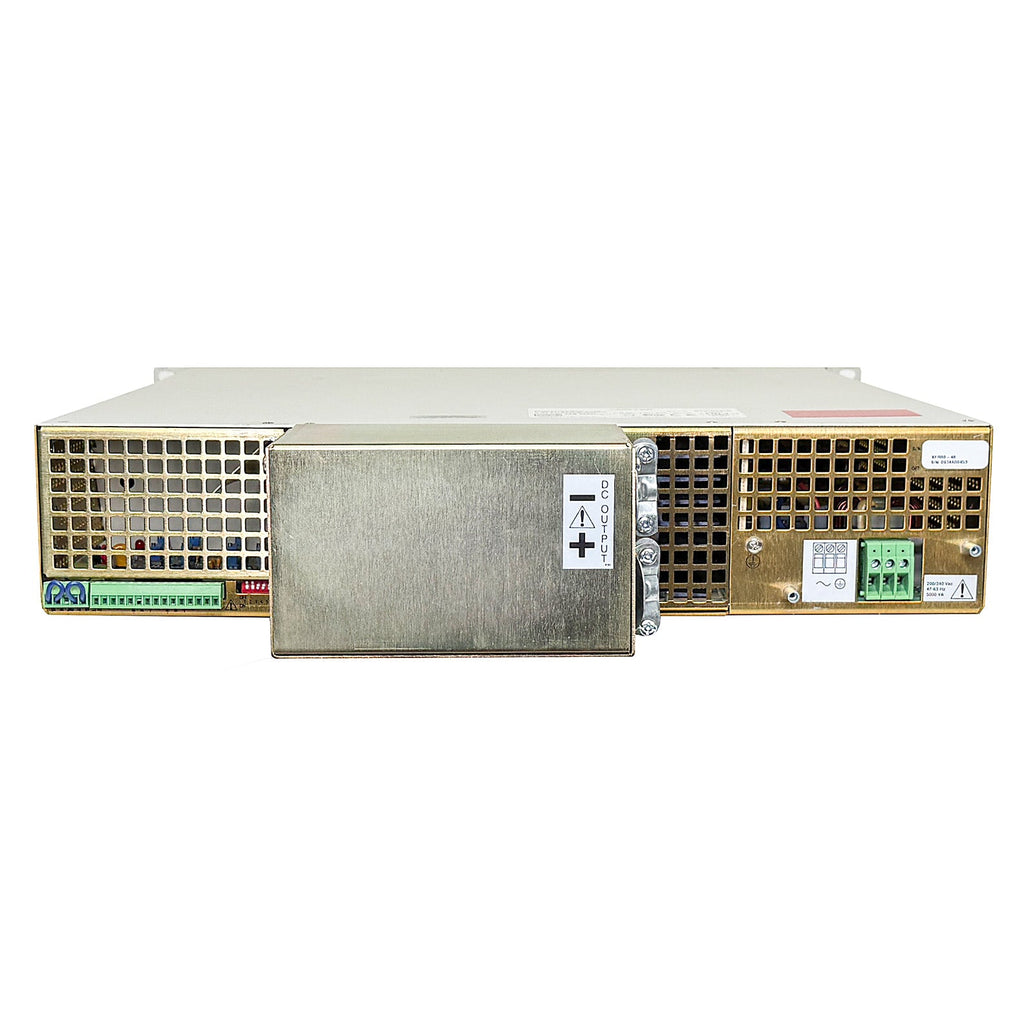

Ametek / Sorensen / Xantrex XFR 60-46 Programmable DC Power Supply, 0 to 60 Vdc, 0 to 46 A
$1.00
Skip to product information
Ametek / Sorensen / Xantrex XFR 60-46 Programmable DC Power Supply, 0 to 60 Vdc, 0 to 46 A
Ametek / Sorensen / Xantrex XFR 60-46 Programmable DC Power Supply, 0 to 60 Vdc, 0 to 46 A
The XFR60-46 power supply provides low-noise, precisely regulated, variable DC output at 2700 Watts of output power. Over voltage protection (OVP) and thermal shutdown are standard. Front panel controls and indicators are extensive.
Features:
- Voltage: 0 to 60 Vdc
- Current: 0 to 46 A
- Output Power: 2760 W
- Output noise (0-20 MHz): 150 mVp-p
- Output ripple (rms): Voltage 15 mV, Current 100 mA
- Load regulation: Voltage (0.02% of Vmax + 5 mV) 17 mV, Current (0.02% of Imax + 5 mA) 14.2 mA
- 190-264 Vac; 47-63 Hz, single phase operation
- Weight: 33 lb; Size: 88.9 mm (3.5 in)H x 483 mm (19.0 in)W x 533.5 mm (21.0 in)D
Please see Datasheet for complete details and specifications.
