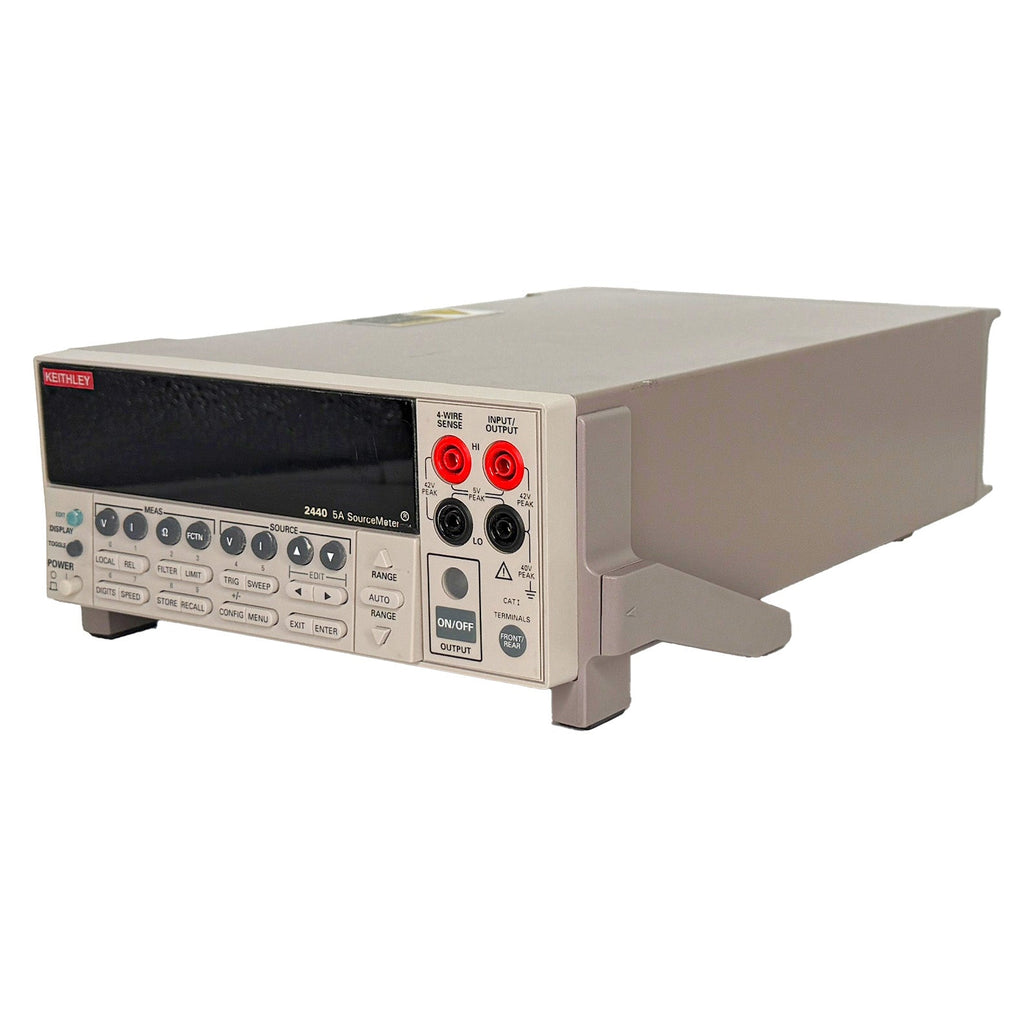

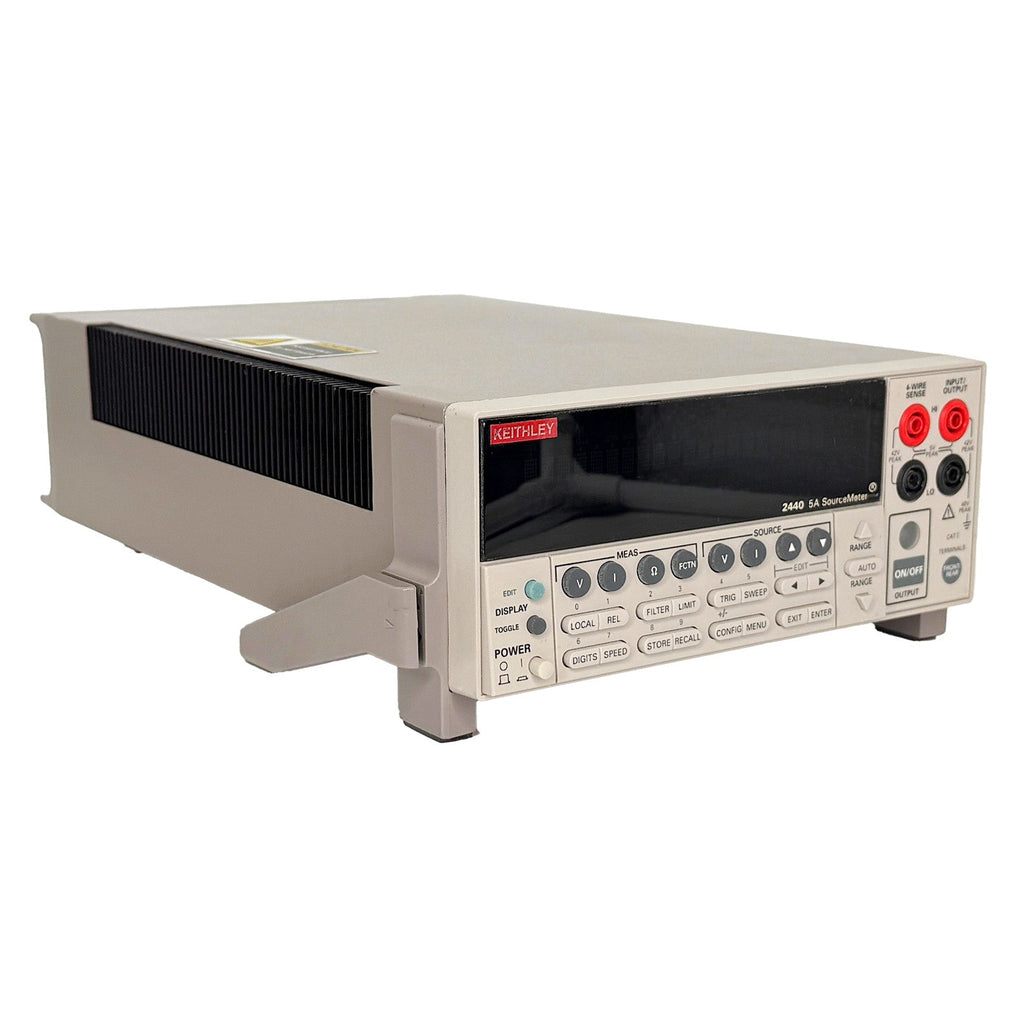

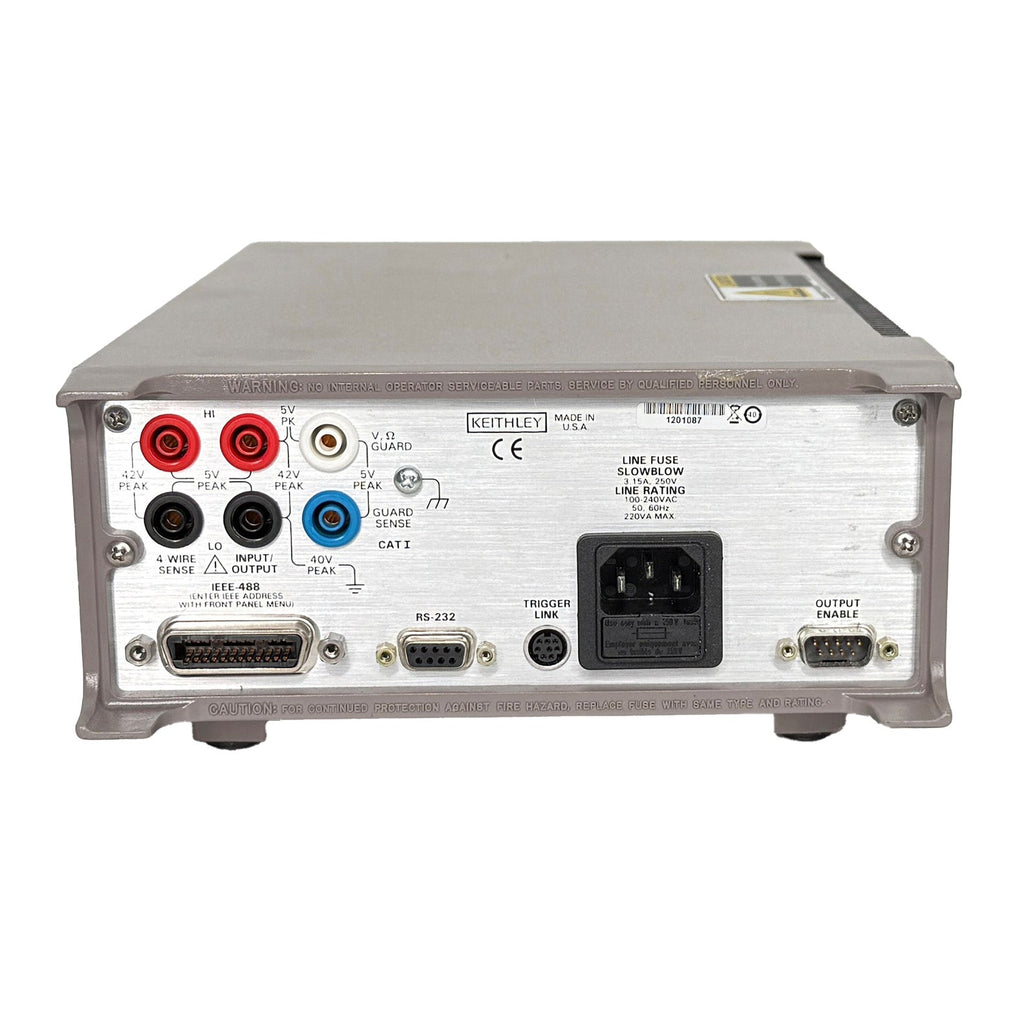

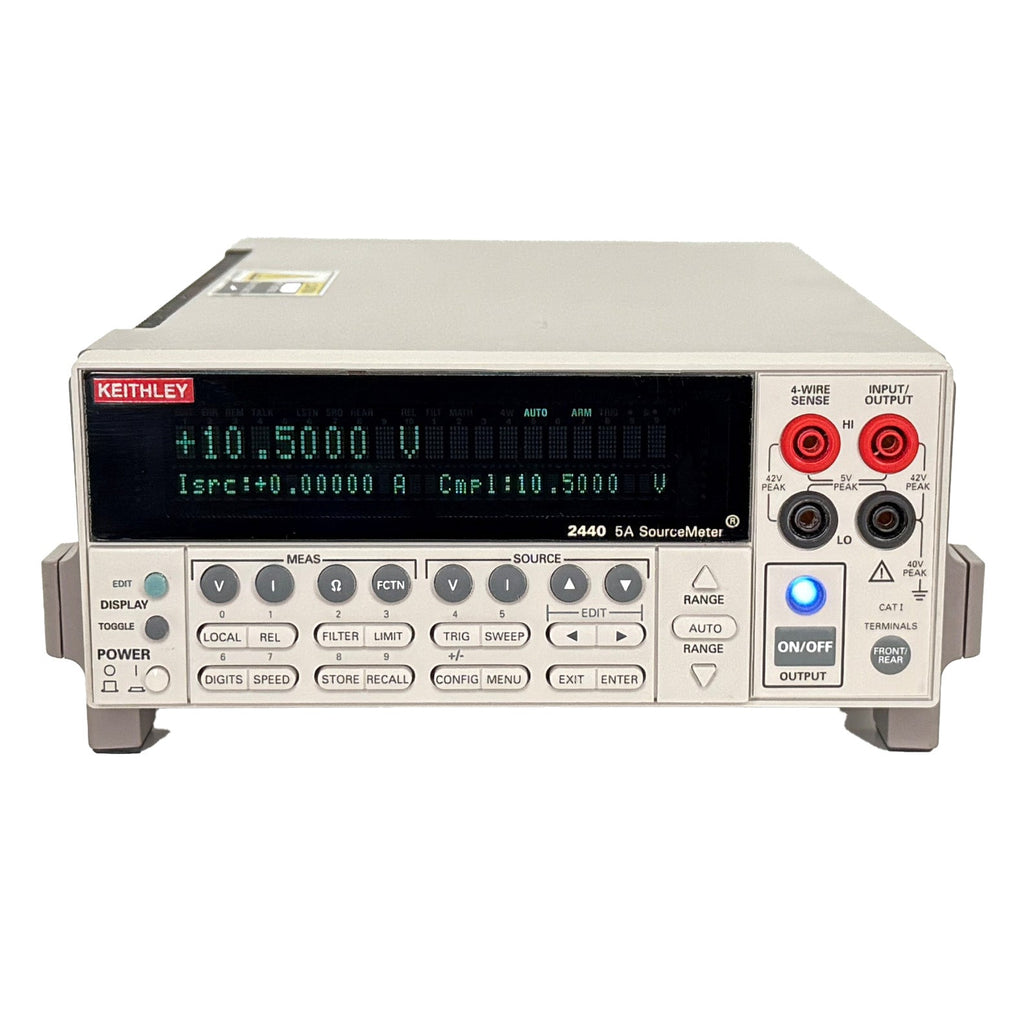

Keithley 2440 SourceMeter, SMU Instrument, 40 V, 5 A, 50 W, Series 2400
Keithley 2440 SourceMeter, SMU Instrument, 40 V, 5 A, 50 W, Series 2400
The 2440 SourceMeter is a 50 W instrument that allows sourcing and measuring voltage from ±1 µV to ±40 V DC and current from ±100 pA to ±5 A. It’s well-suited for testing a wide range of devices, including diodes, resistors, resistor networks, active circuit protection devices, and portable battery-powered devices and components. It’s also useful for systems power sourcing and IDDQ testing applications.
Features:
- Five instruments in one (I,V Source, I,V,R Measure)
- 50 W DC
- Source and sink (4-quadrant) operation
- 0.012% basic measure accuracy with 6½-digit resolution
- 2-, 4-, and 6-wire remote V-source and measure sensing
- 1700 readings/second at 4½ digits via GPIB
- Pass/Fail comparator for fast sorting/binning
- Available high speed sense lead contact check function
- Programmable DIO port for automation/handler/prober control
- Standard SCPI GPIB, RS-232 and Keithley Trigger Link interfaces
- Keithley LabTracer 2.0 I-V curve tracing application software (download)
- Operating Voltage: 100 Vac to 240 Vac rms, 50 to 60 Hz (automatically detected at power up)
- Dimensions: 89 mm (H) x 213 mm (W) x 370 mm (D), Weight: 4.1 kg (9 lbs.)
Please see Datasheet for complete details and specifications.
