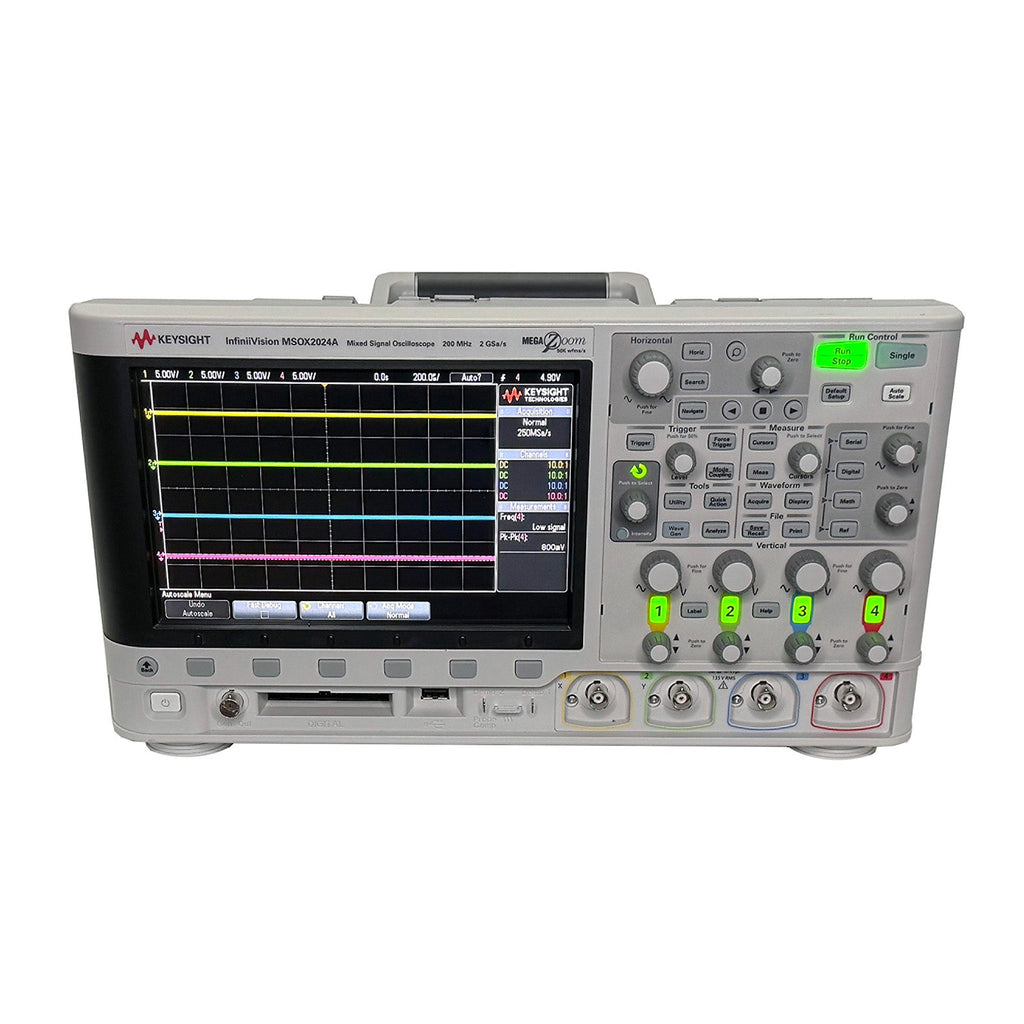

Keysight / Agilent MSOX2024A Mixed Signal Oscilloscope, 200 MHz, 4 Analog Channels
Keysight / Agilent MSOX2024A Mixed Signal Oscilloscope, 200 MHz, 4 Analog Channels, 8 Digital Channels
The MSOX2024A oscilloscope offers high-end technology in a smaller form factor. With an industry-leading waveform update rate, you can capture elusive glitches and anomalies not possible on other oscilloscopes. Combined with an extensive set of software options and probes, the 2000A X-Series enables you to make measurements you can count on.
- 200 MHz bandwidth
- 4 analog plus 8 digital channels
- Easily view your signals on the 8.5-inch WVGA display
- Capture more data with up to 1 Mpts memory
- See more signal detail with 200,000 waveforms/second update rate
- Expand your measurement capabilities with full upgradeability: add a 20 MHz function generator, a 3-digit voltmeter, serial trigger and analysis, segmented memory, and mask testing at any time
Features:
- 200 MHz Bandwidth (upgradable)
- 4 Analog Channels
- 8 Digital Channels
- Sample Rate: 2.5 GSa/s
- Memory Depth: 4 Mpts
- 8.5-inch Display
- Waveform Update Rate: >200,000 waveforms per second
- Input sensitivity range: 1 mV/div to 5 V/div
- Input impedance: 1 MΩ ± 2% (11 pF)
- 8-bit Vertical Resolution
- Integrated digital voltmeter
- Integrated hardware counter: 5-digit frequency counter (8 digits with external 10 MHz clock reference)
- Serial protocol analysis I2C, UART
- Segmented memory
- Standard ports: One USB 2.0 high-speed device port on rear panel; Two USB 2.0 high-speed host ports, front and rear panel
- Shipping weight: 9.2 lb
Please see the Datasheet for complete details and specifications.
