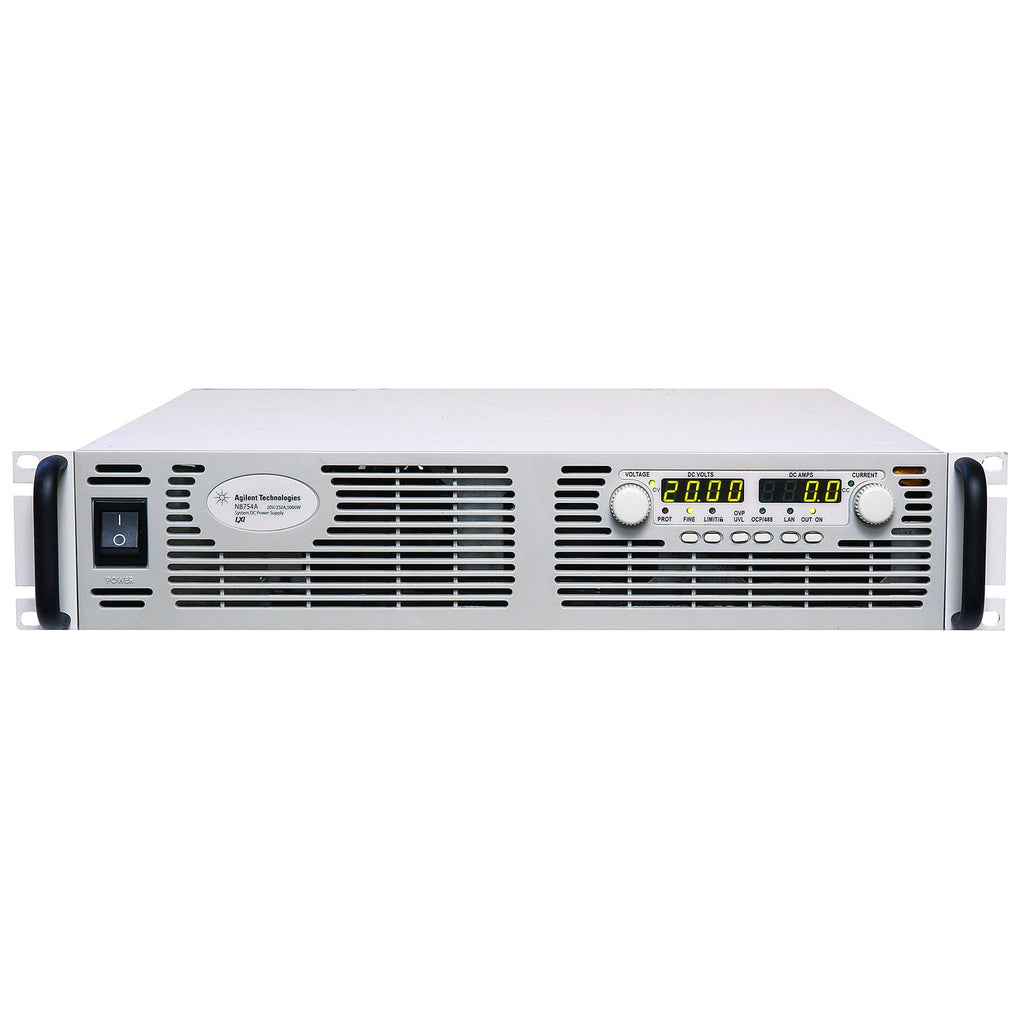

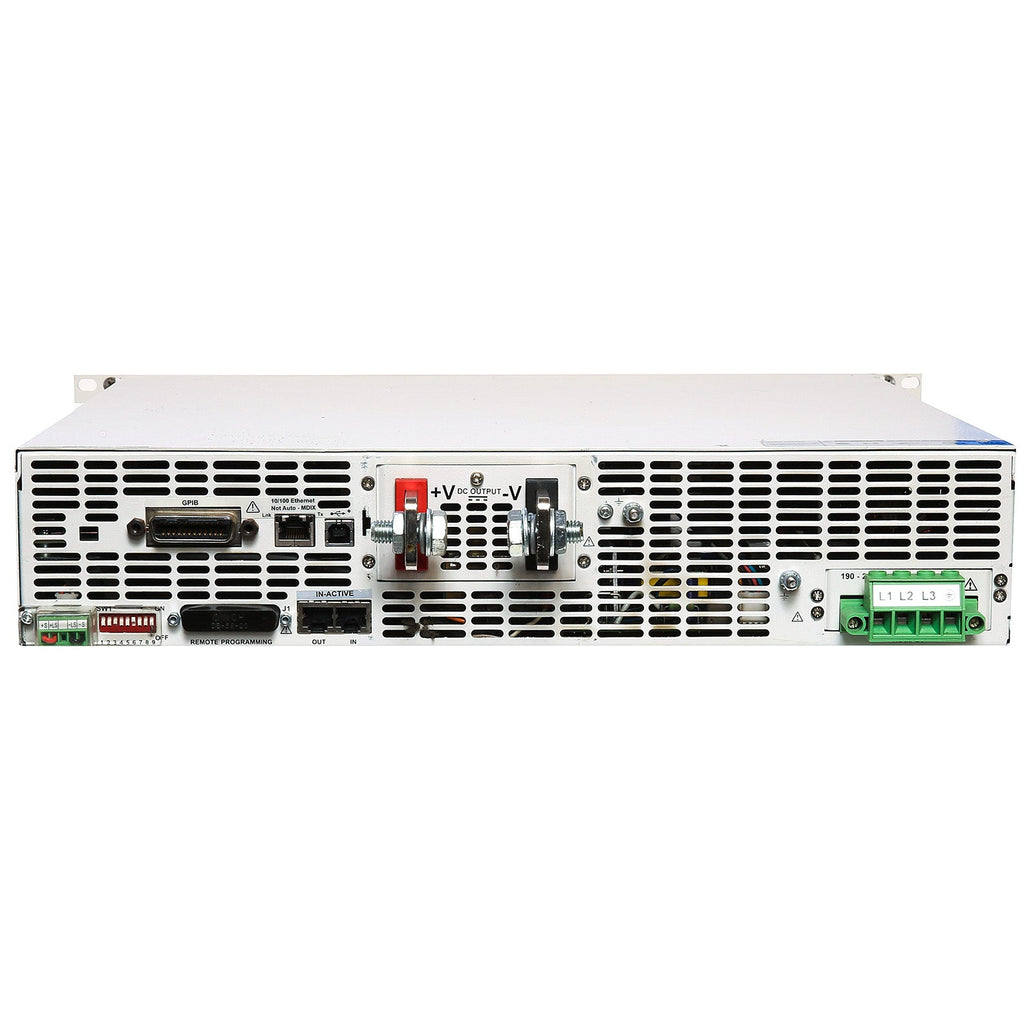

Keysight / Agilent N8754A Autoranging System DC Power Supply, 0 to 20 Vdc, 0 to 250 A, 5000 W

The N8754A is a 5 kW auto-ranging, single-output programmable DC power supply giving you just the right performance in a compact (2 U) package.

The N8700 family of affordable 3300 W and 5000 W single-output programmable DC power supplies consists of 21 models for simple DC power applications. They provide stable output power, built-in voltage and current measurement, and output voltage and current from 8 V to 600 V and 5.5 A to 400 A.

These economical supplies offer many system-ready features like multiple standard I/O interfaces to simplify and accelerate test-system development for R&D, design validation, and manufacturing

Features:

• Output Ratings
  • Voltage: 20 V
  • Current: 250 A
  • Power: 5000 W
• Programming accuracy
  • Voltage: 0.025% + 15mV
  • Current: 0.1% + 750mA
• Built-in voltage and current measurement
• High power density, 5 kW in only 3U (5.25" / 13.34 cm)
• Protection from over-voltage, over-current, and over-temperature
• LAN (LXI Core), USB, GPIB, and analog interfaces are all standard
• AC input Voltage range: 190 to 240 VAC, 50/60 Hz, 3-Phase

Please see Datasheet for complete details and specifications.
